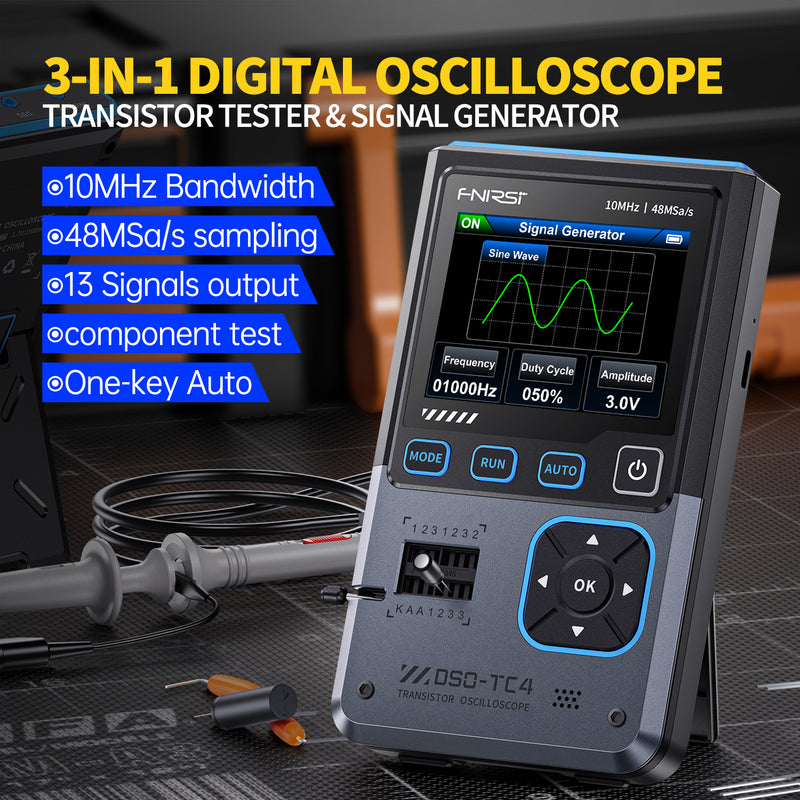

[DSO-TC4] FNIRSI 3-IN-1 10MHz 48MSa/s Digital Oscilloscope Transistor Tester Signal Generator

FNIRSI® DSO-TC4 3-IN-1 10MHz 48MSa/s Digital Oscilloscope Transistor Tester Signal Generator

Highlights

◉ Multifunctional Tool: Combines oscilloscope, transistor tester, and signal generator in one upgraded device for versatile use.

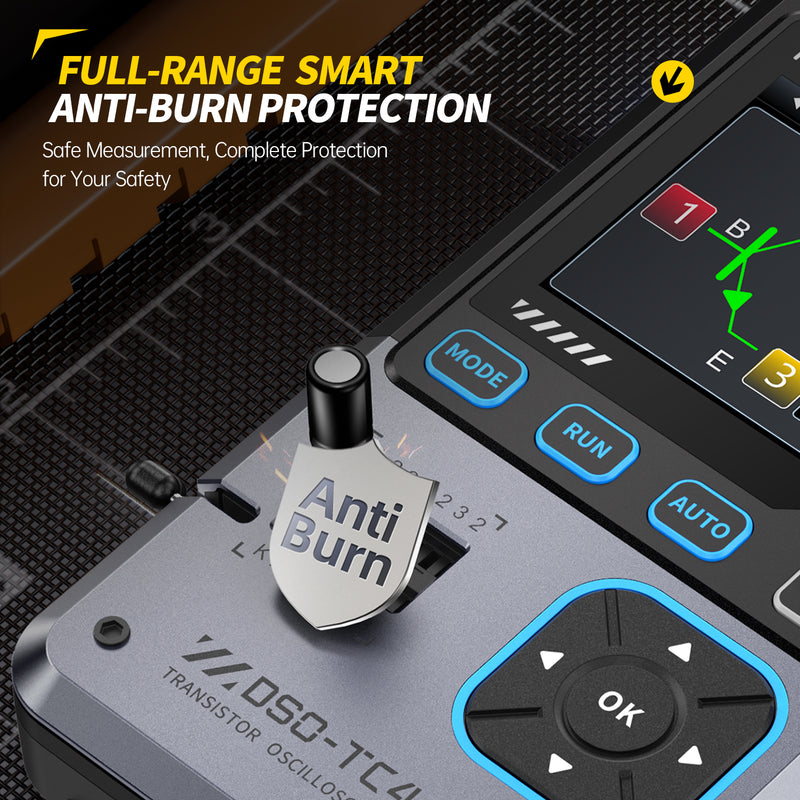

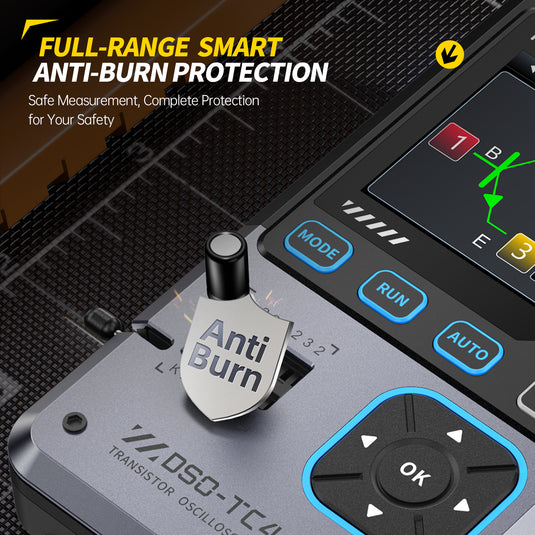

◉ Smart Burnout Protection: Full-range protection ensures safe measurements across all modes.

◉ High-Performance Scope: 10MHz bandwidth, 48MSa/s sampling rate, max input 400V. One-touch AUTO for fast, accurate signal capture.

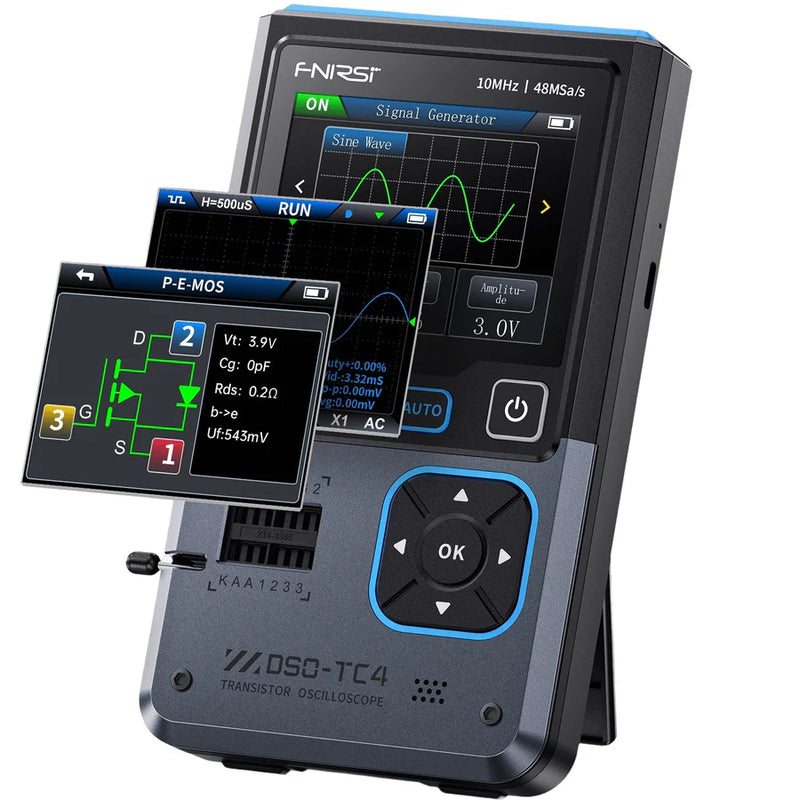

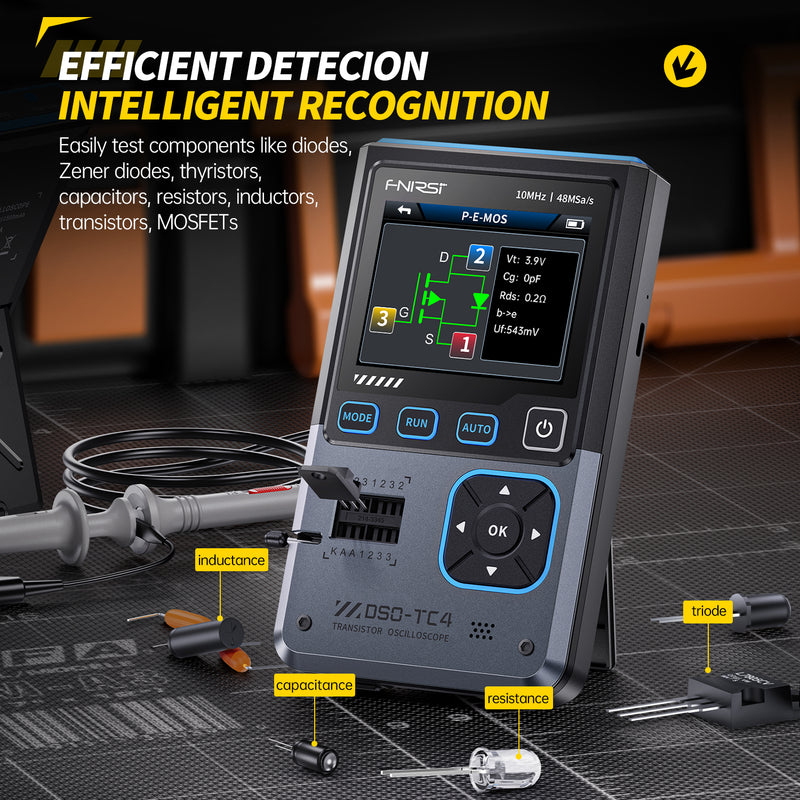

◉ Component Identification: One-click test for diodes, Zener diodes, SCRs, capacitors, resistors, inductors, transistors, MOSFETs, and more.

◉ TFT Color Display: 2.8" high-resolution TFT screen for clear waveform and data visualization.

The main features of the product are:

Oscilloscope functions:

• Sampling rate: 48MSa/s
• Analog bandwidth: 10MHz
• Voltage protection: ±400V

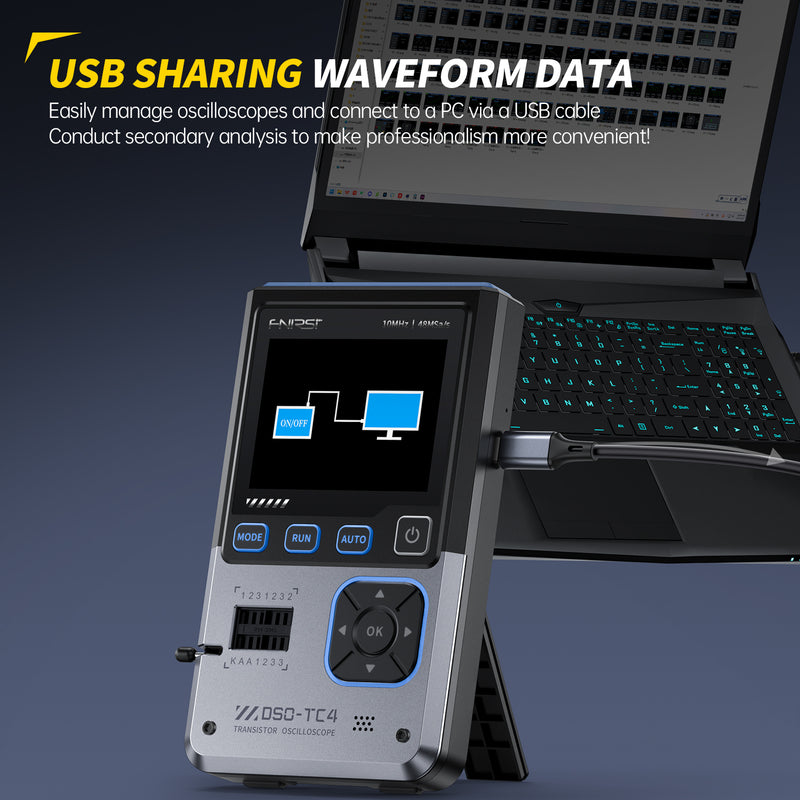

• Waveform storage: supports screenshot saving and viewing, which is convenient for data analysis

Signal generator function:

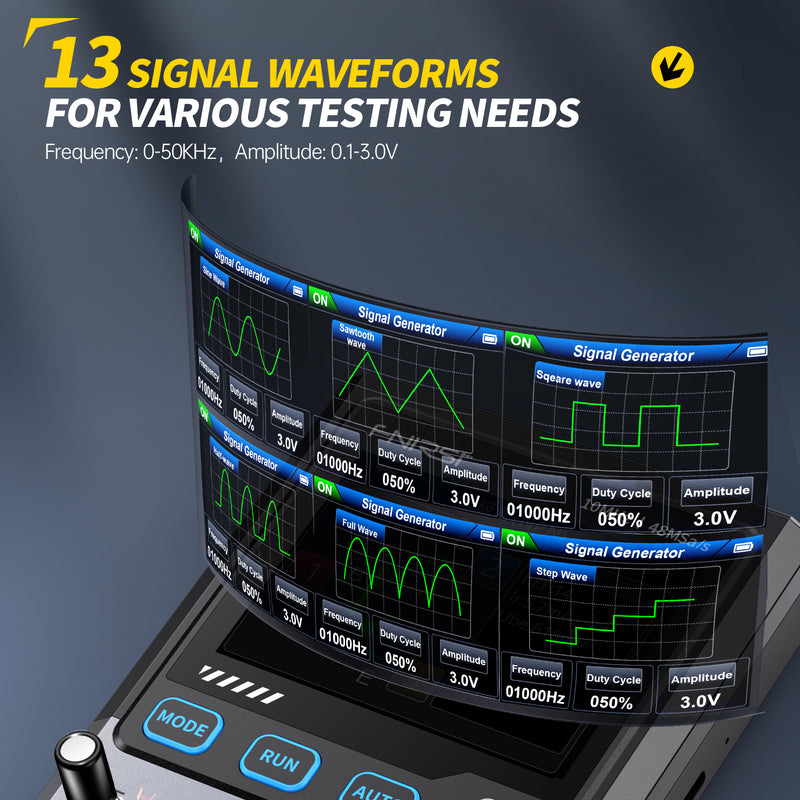

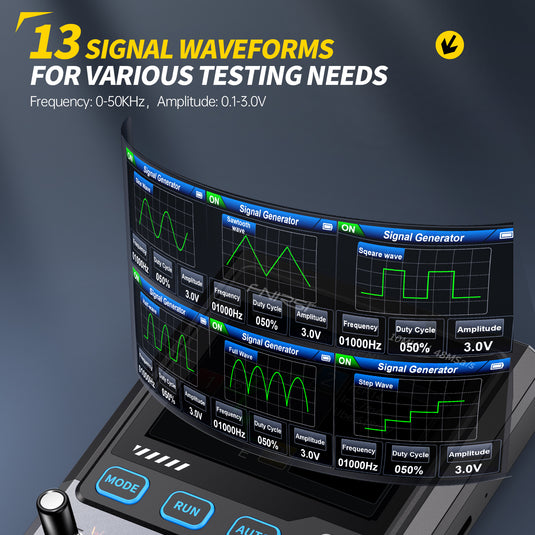

• Supports 13 waveform outputs, frequency range 0-50KHz, output voltage adjustable 0-3v.
• Output parameters (frequency, amplitude, duty cycle) are adjustable, flexible to meet various needs

Transistor function:

• High efficiency: Automatically identify the type and pin arrangement of the tested component, simplify the operation process, and improve test efficiency
• Diverse categories: Detect and analyze the performance and characteristics of semiconductor components such as transistors, diodes, triodes, field effect (FET), etc

Portable design:

• Equipped with a 2.8-inch TFT color screen, the picture is clear and intuitive
• Built-in high-capacity rechargeable lithium battery (1500mAh), standby time 4 hours
• Small and light, suitable for mobile use.

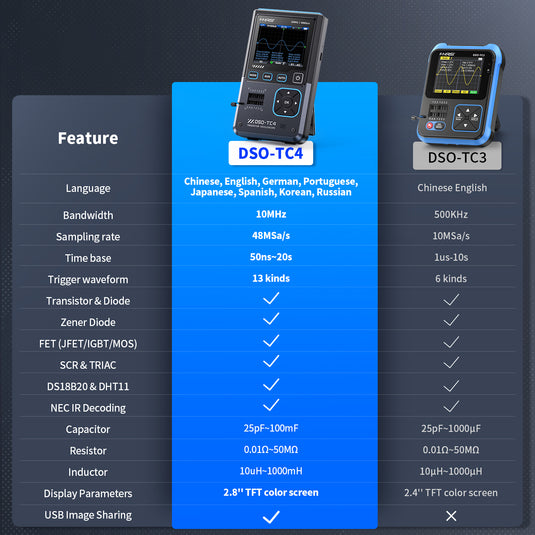

Specifications

Main Parameters

Oscilloscope Parameters

Component Testing

Signal Generator Parameters
