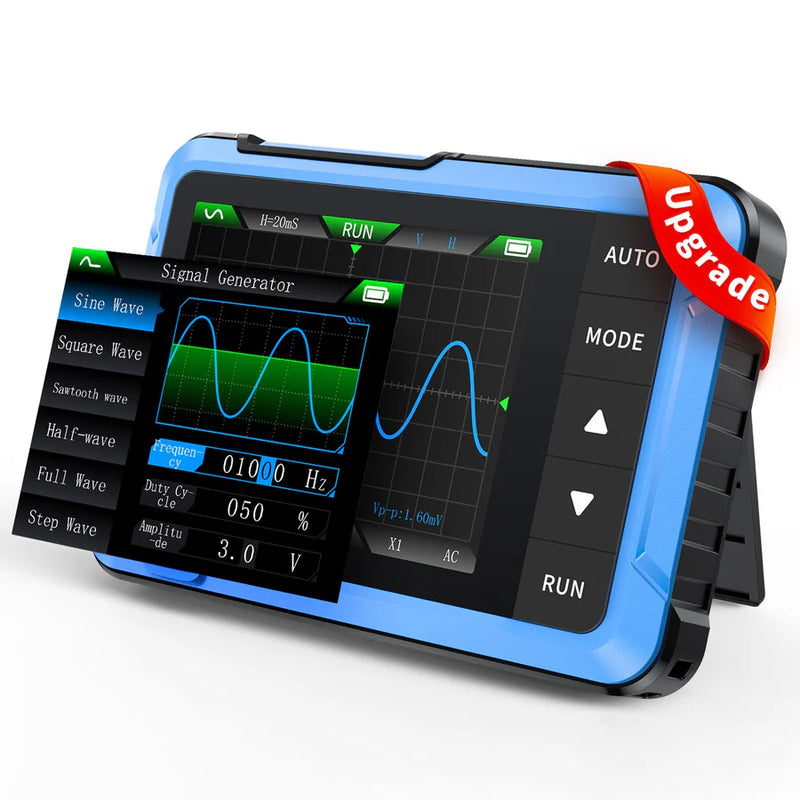

FNIRSI® DSO-510 10MHz 48MS/s Mini Handheld Digital Oscilloscope Signal Generator

Highlights

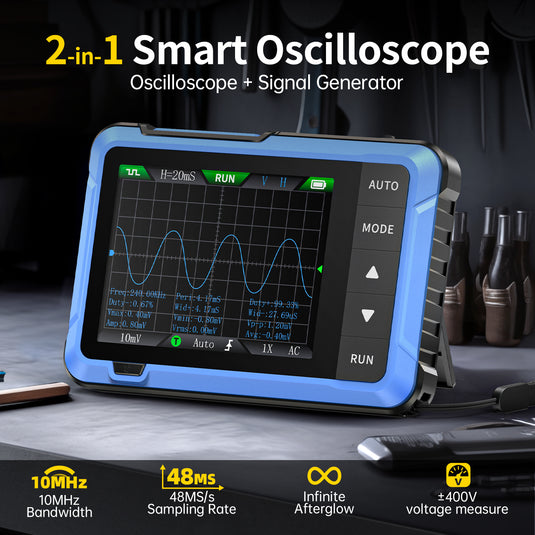

✦ Upgraded Version: FNIRSI DSO-510 handheld oscilloscope is upgraded from FNIRSI DSO152 oscilloscope, 10 MHz high bandwidth, 48 MS/s high sampling rate, 50 ns-20 S time base range. Voltages up to 400 V can be measured.

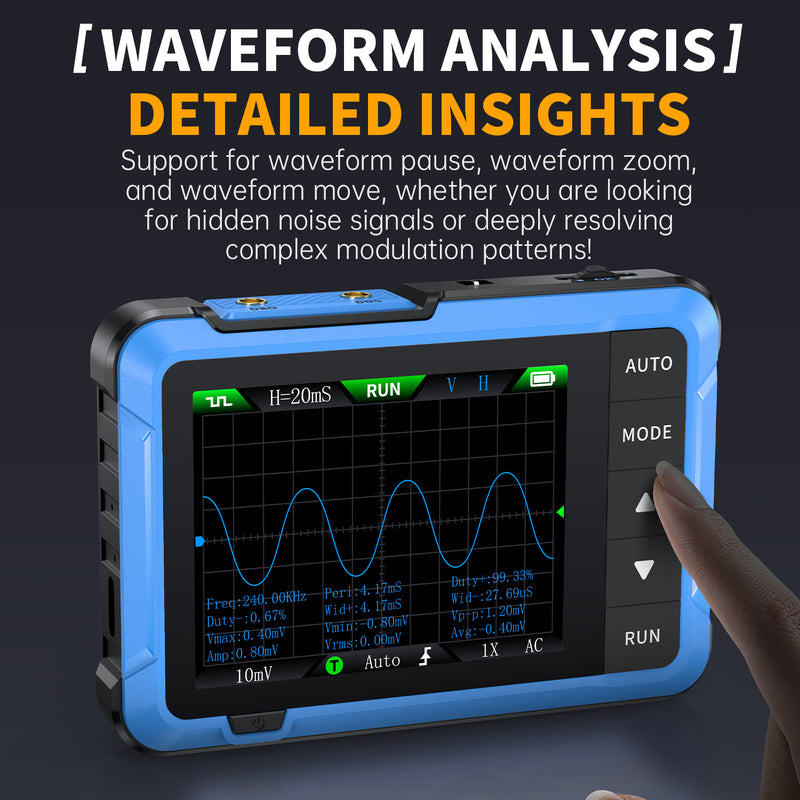

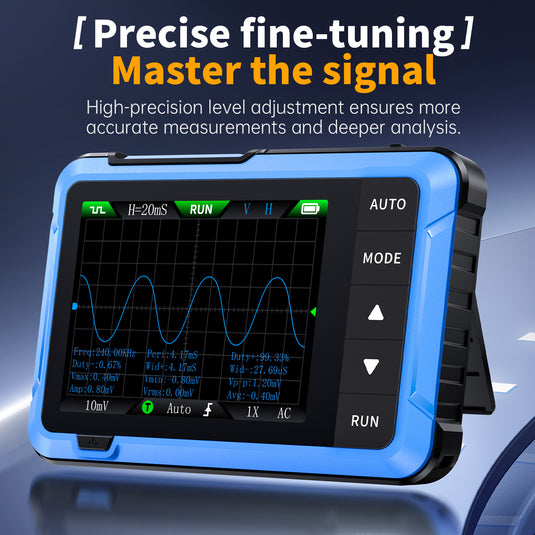

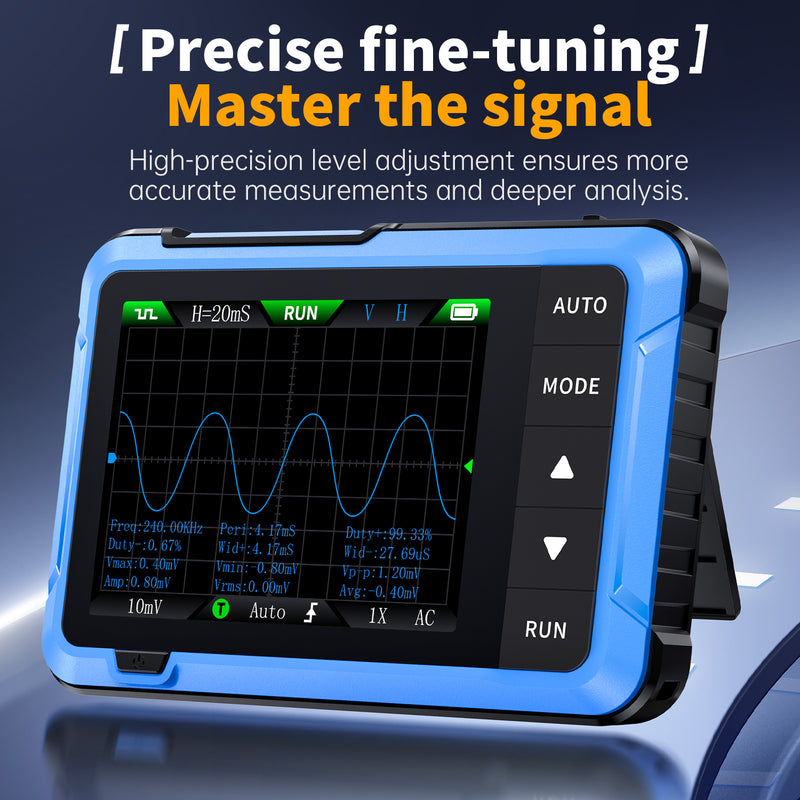

✦ Accurate measurement: The digital portable oscilloscope supports the level of display and the infinite afterglow, which can accurately capture the signal features. It supports waveform scaling, suspension, movement and image saving and exporting functions.

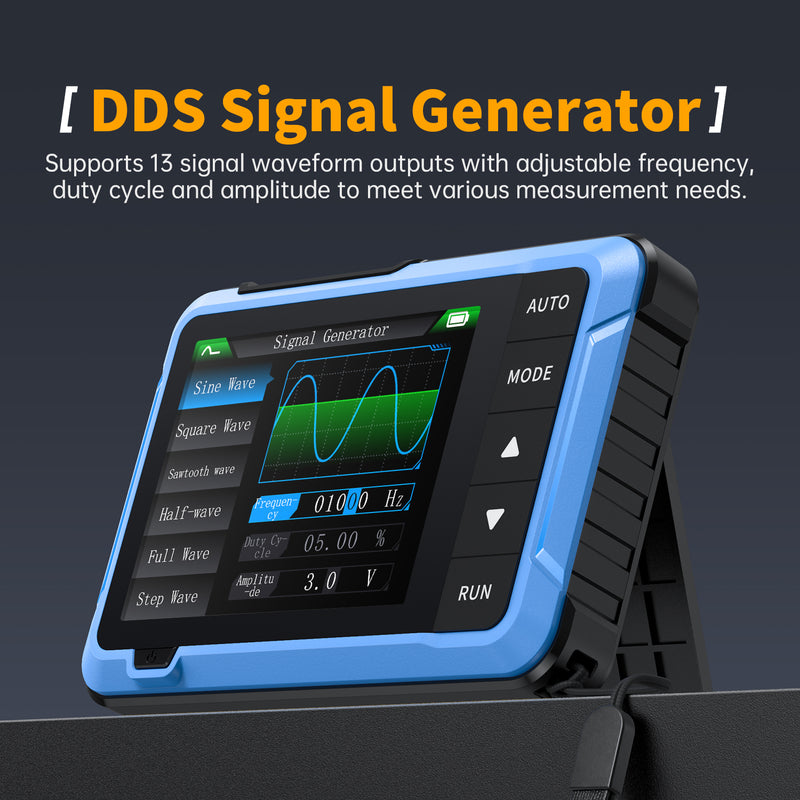

✦ DDS signal generator: FNIRSI DSO-510 can output 13 kinds of waveforms, and the maximum waveform output frequency is up to 50 KHz, which can meet the needs of diversified signal simulation and improve the efficiency of testing and analysis.

✦ Professional Designed: Suitable for periodic analog signals and non-periodic digital signals. 2.8-inch HD LCD display, 320*240 resolution, which is clear and easy to observe. The one-key AUTO function can automatically optimize the measurement parameters.

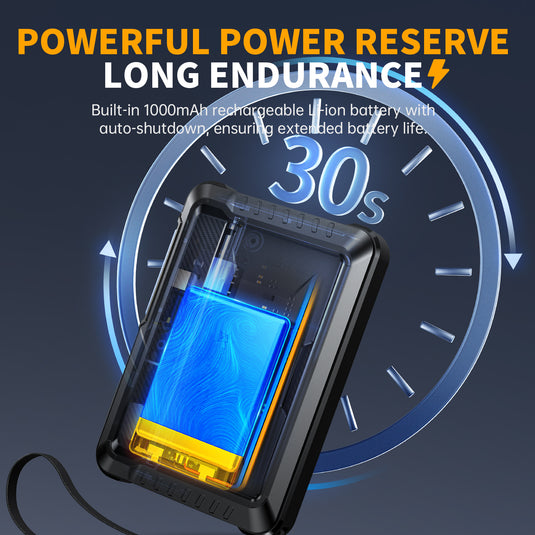

✦ Long-lasting battery life: The automotive oscilloscope has a built-in 1000mAh high-quality lithium battery and supports Type-C interface charging to ensure worry-free long-term use.

The DSO510 is a high-performance flagship oscilloscope, perfect for complex signal testing, research, and development. Designed with advanced functionality, it’s ideal for professionals managing intricate repairs or educational environments needing precise measurements.
This oscilloscope offers a real-time sampling rate of 48MS/s and a 10MHz bandwidth, supporting both periodic analog and non-periodic digital signals. Equipped with complete trigger modes (Single, Normal, Auto), it provides reliable accuracy across a wide voltage measurement range of ±400V. The DSO510 also features an efficient one-click AUTO mode, displaying waveforms instantly without complicated adjustments.
Additionally, it includes a built-in signal generator with a 50KHz output capability, allowing for versatile testing setups. Its 2.8-inch HD LCD screen with 320×240 resolution ensures clear visuals, and the 1000mAh lithium battery offers up to 4 hours of continuous use.

Features

Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist
DSO oscilloscope: 48MS/s, 10MHz bandwidth, ±400V voltage range.
Signal Generator: 50KHz
High-definition 320*240 LCD, Type-C interface.

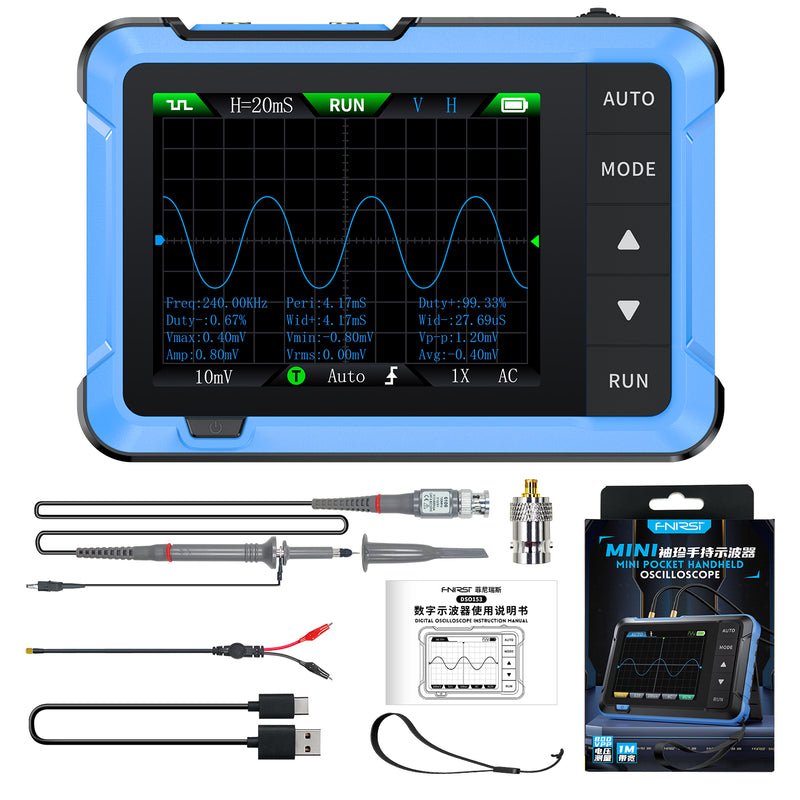

Finished assembly, lightweight, perfect for maintenance.
Versatile trigger functions: single, normal, automatic.

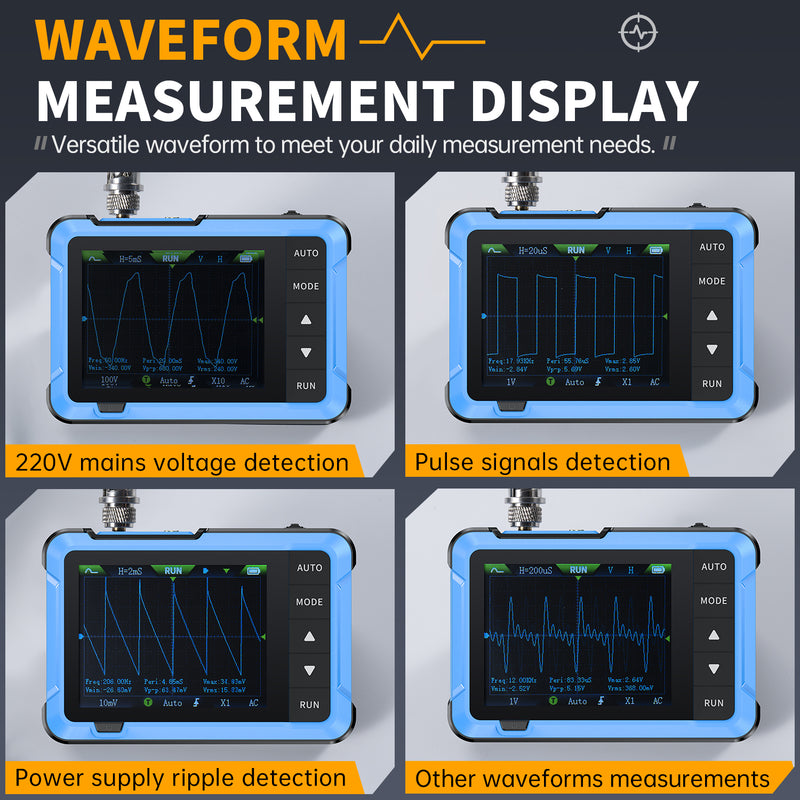

Signal Type Support: Periodic analog signals and non-periodic digital signals.
2 languages: Chinese, English
One-Click AUTO Mode: Displays waveforms instantly without complex adjustments.
Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
Recommended Use: Ideal for advanced repairs, development, and education projects.

* Basic Parameters *

Brand

FNIRSI

Model

DSO-510

Display

2.8 Inches / PPI:320*240

USB Charging

5V/1A

Lithium Battery Capacity

1000mAh

Size

99x68.3x19.5mm

Weight

104g

* Mini Oscilloscope *

Channel

Sampling Rate

48MS/s

Bandwidth

10MHz

Vertical Sensitivity

10mV/Div-20V/Div (Progress according to the 1-2-5 way)

Time Base Range

50ns/Div-20s/Div (Progress according to the 1-2-5 way)

Voltage Range

X1:±40V (Vpp:80V)
X10:±400V (Vpp:800V)

Trigger Mode

Auto / Normal / Single

Trigger Edge

Rising edge / Falling edge

Coupling

AC/DC

* Signal Generator *

Frequency

0-50KHz

Duty Cycle

0-100% (rectangular and sawtooth waves)

Amplitude

0.1-3.0V

Waveforms

Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz wave.
