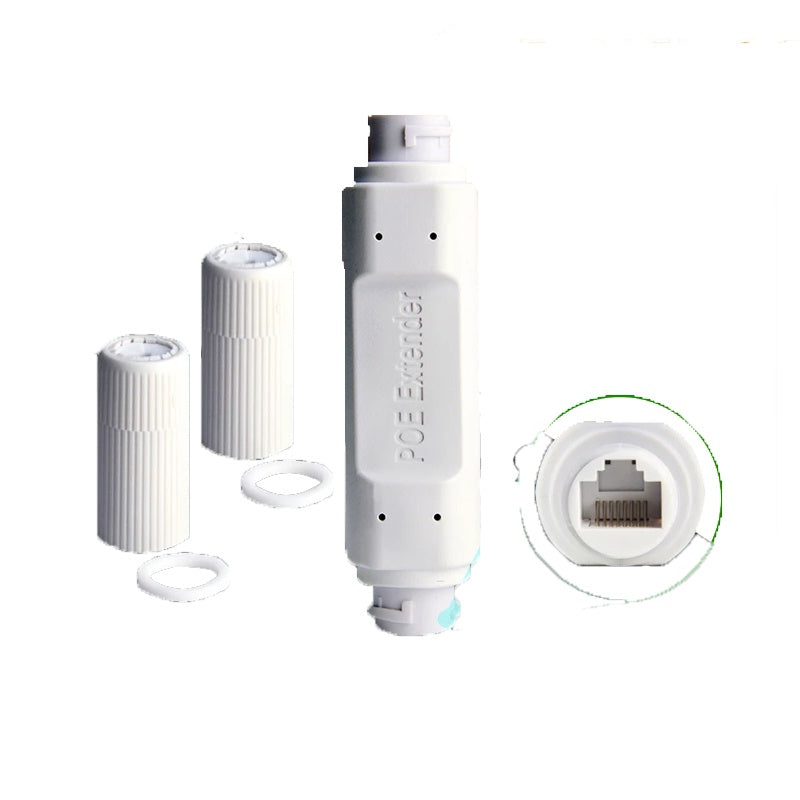

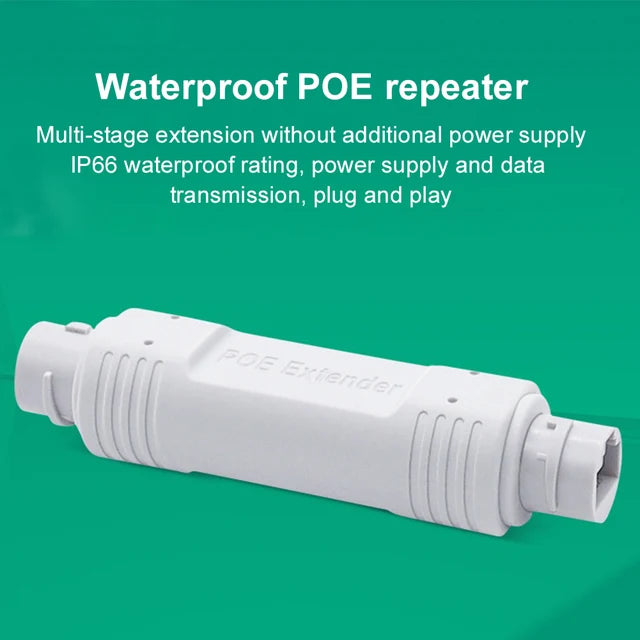

- Repeater extender up 100M
- POE one in and 1 out

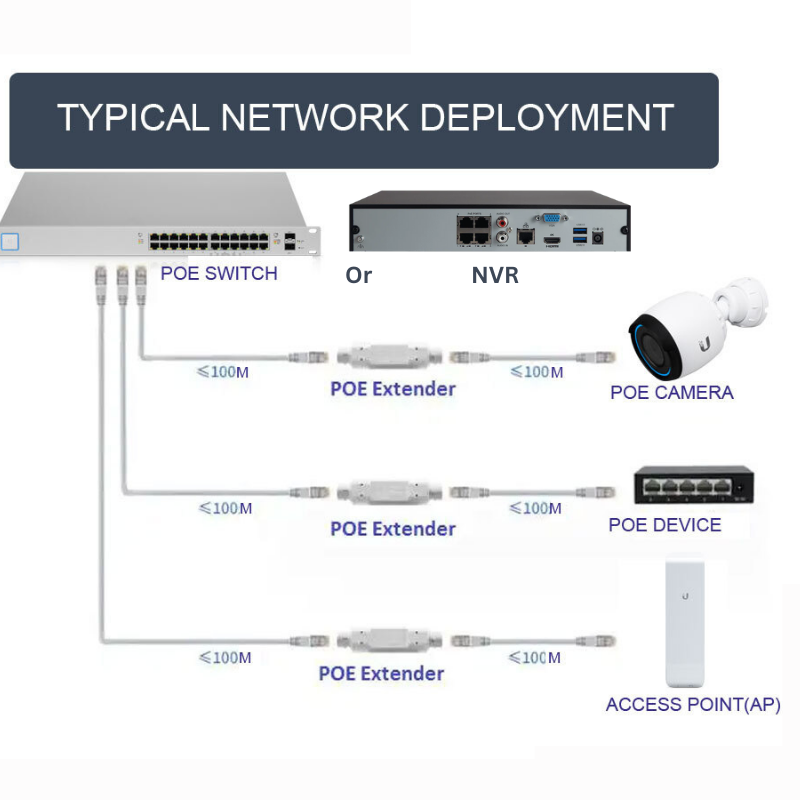

- POE Extender for Switch NVR IP Camera AP
Product Features：
- 100Mbps fast Ethernet
◇ Provide 2*10/100Base-TX RJ45 port, the uplink port is a power port to facilitate flexible networking and meet the networking power supply and transmission requirements within 200 meters.
◇ All ports support non-blocking wire speed forwarding for smoother transmission;
◇ Support IEEE802.3x full duplex flow control and Back-pressure half duplex flow control.
- Intelligent POE power supply function
◇2*10/100BASE-XT RJ45 ports support POE power supply, meeting the POE power supply requirements in various scenarios in the security field;
◇Complies with IEEE 802.3af /at POE power supply standard, automatically identifies POE devices to supply power without damaging non-POE devices. The maximum POE output power of a single port is 30Watt.
- Simple Operation
◇ Plug and play, no configuration, easy to use and maintenance;
◇ POE repeater can extend the network signal transmission distance and the POE power supply distance;
◇ When the extender works, no external power supply is needed, which can easily transfer the full bandwidth and power network cable within 200 meters.
Specification:
| Model | CPE-1041 |
| Product interface |
1*10/100Base-TX POE port (Data/Power）
1*10/100Base-TX upstream PD port (Data/Power)
|
| Transmission distance |
10BASE-T：Cat3,4,5 UTP(≤100meter)
100BASE-TX：Cat5 or later UTP(≤100meter)
|
| Network protocol |
IEEE802.3 10BASE-T； IEEE802.3i 10Base-T；
IEEE802.3u 100Base-TX；
IEEE802.3x
|
| Forwarding mode | Storage and forwarding (full line speed) |
| POE Power Supply standard | Support IEEE802.3af/at |
| Power Supply Type | Default 1/2(+)，3/6(-) |
| Maximum POE power | 30Watt |
| The machine power consumption | ＜2Watt |
| Input voltage and interface | POE(IEEE802.3af/at)，RJ45 port |
| Working temperature | -20℃～60°C |
| Product size | 100*25*22mm(L*W*H) |
| Product weight | 80g |
