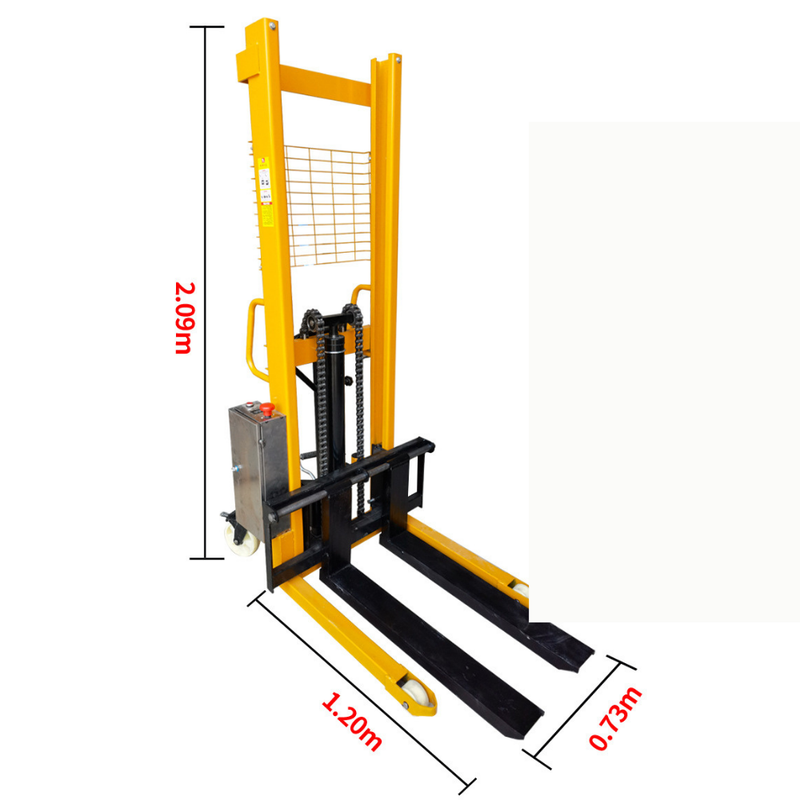

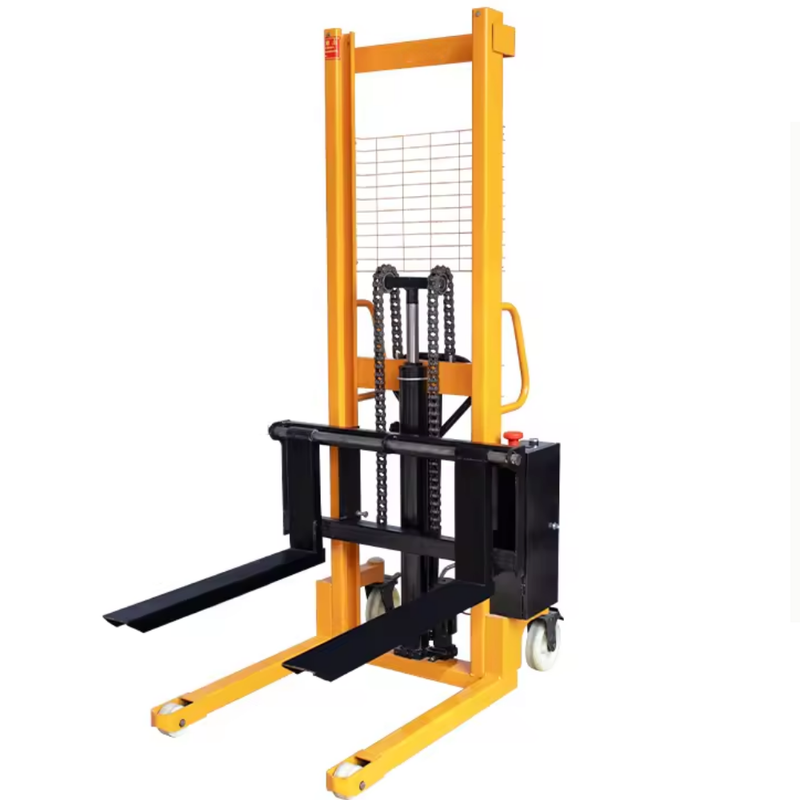

1.6M Sami-Electric Narrow Pallet Stacker 1Ton
Improve the efficiency and speed of moving, lifting, loading, and unloading with the use of a semi-electric straddle stacker. This high-quality equipment can significantly increase employee productivity while also reducing the risk of injuries.
Product Features:
- Manually push, pull , Electrical lift up and Hydromantic drop down
- Extra heavy duty steel frame, chain and ram
- Suitable for all heavy and light loads
- Suitable for lifting open pallets, plastic pallets, safes, equipment, boxes, machinery, etc
- Economic and mobile work aid
- Hand or foot pedal pump up
- Foot operated brake system for extra safety
Product Dimensions:
- Max Loading Capacity: 1000kg
- Mac Loading Capacity at 1.6m is 700kg
- Lift Height: 1600mm
- Single fork length 1200mm, width 150mm, thickness 65mm
- Min-Max Fork Height: 80mm-1600mm
- Adjustable Fork Width: 20mm x 750mm
- Clearance between forks: 20mm – 480mm
- Inside leg width 540mm – outside Leg width 730mm
- Wheels: front – 70x70mm , rear – 180x50mm
- Overall dimensions 167(L) x 78(W) x 204(H) cm – weight 235kg
- Shipping dimensions – Pallet – 170 x 120 x 220 cm – weight 277kg
- Battery capacity: 40Ah
